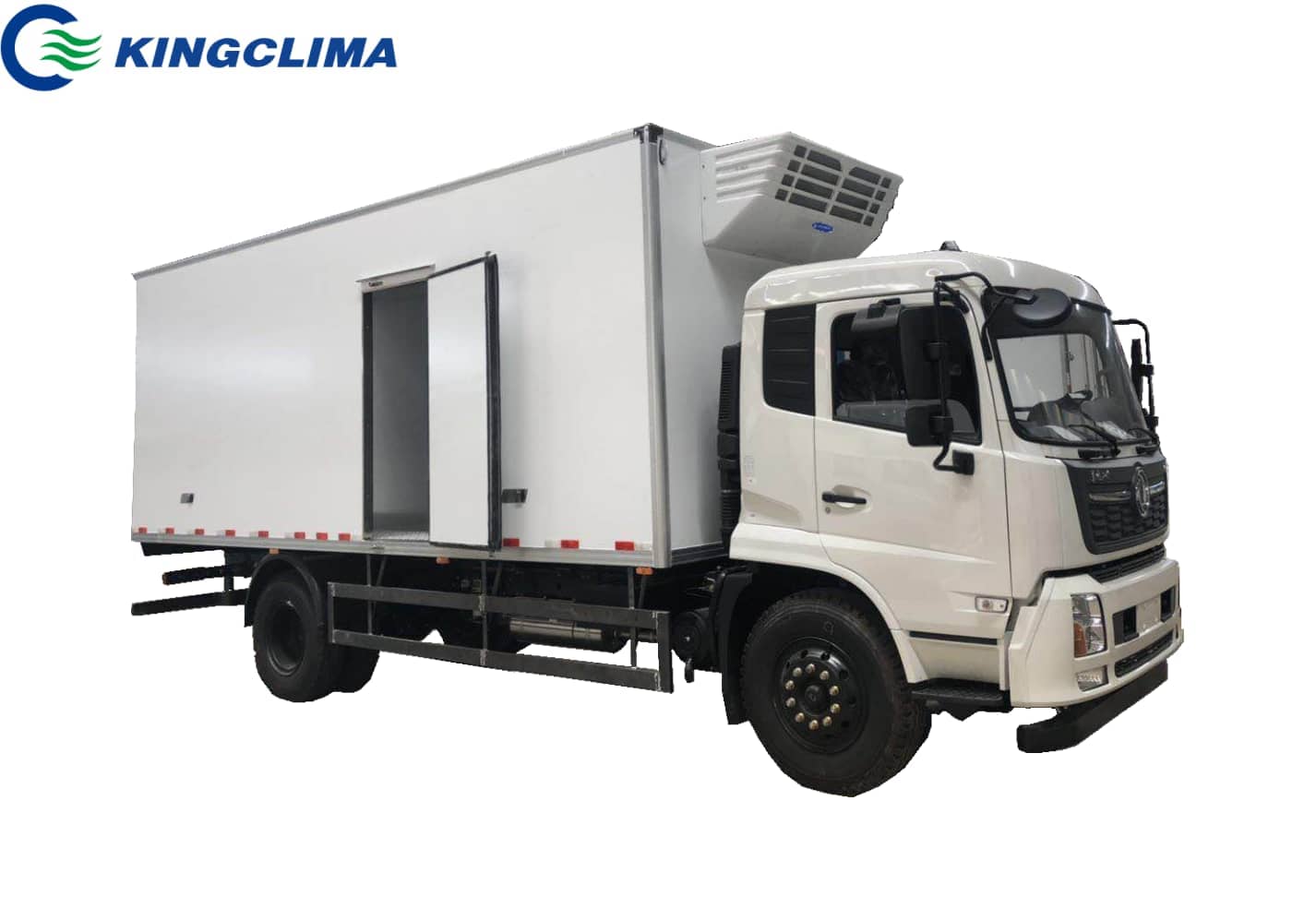

K-760 Truck Refrigeration Unit

The KF-20 mobile trailer refrigeration units are used for -20℃ to 10℃ temperature controlled for 20m³ box and powered by two solution 110V/220V for choice.
Model: KF-20
Voltage: AC220V/AC110V
Cooling Capacity： 3100W/10571BTU
Temperature Range: -20℃ to 10℃

The K-360C is a cost-effective refrigeration unit designed for small to medium truck boxes of around 15m³. Operating in a temperature range of -5°C to +15°C, it is ideal for fresh cargo that requires reliable chilling but not freezing. It runs on R134a refrigerant (charge: 1.4–1.5 kg) and features a 5S14 compressor (163 cc/rev), dual fans with 1300 m³/h airflow, and efficient heat exchange (20 kW condenser, 19 kW evaporator). Compatible with DC 12V/24V low-voltage systems, it’s a perfect choice for urban cold chain delivery.

K-360S Van/truck engine driven Refrigeration Units with Electric Standby is front mounted and used for 11-16 cubic meter of Van or truck cargo box to be -20℃ to +15℃ .The cooling units still continue to work through connecting into supply power AC220V-240V when your van or truck stops.
Customers don’t need to install the standby system under the truck chassis, so it make the whole truck refrigeration units beautiful, compact and concise, it can decrease the wire installation.

K-360C is truck chiller unit which can keep temp in truck box from -5℃ to 30℃ and get our latest quotation list for whole set of truck reefer units.

K-660S Electric Standby Units
K-660S is integrated backup power operated truck refrigeration solution for 35~45 m³ truck box.
Model : K-660S
Airflow Volume : 3350m³/h
Recommend Box Volume : 35~45m³
Temp. range : -20℃~+30℃

KingClima T-460 box truck reefer unit is high-end truck reefer unit designed for 16-19m³ truck boxes for perishable cargo delivery. It can be also equipped with standby system to increase the cooling system working time. KingClima can meet all your various requests for the Transport Refrigeration Units.Any needs just please send mails to us.

The K-360C Truck Refrigeration Unit is a high-performance, energy-efficient refrigeration system designed for light and medium-duty trucks, offering reliable temperature control for transporting perishable goods. The K-360C Truck Refrigeration Unit is a reliable and efficient solution for temperature-controlled transportation, providing excellent performance with minimal energy consumption, making it ideal for businesses seeking cost-effective cold chain solutions.

The K-560 Truck Refrigeration Unit is designed to maintain stable cooling performance for refrigerated transport. It operates within a temperature range of -18°C to 15°C, ensuring optimal conditions for perishable goods. The unit utilizes Refrigerant R404a, with a charge amount of 1.6-1.7 kg. Powered by a TM16 compressor, it features a displacement of 162 cc/r and a quantity of 3. The system includes a condenser capacity of 31.7 kW and an evaporator capacity of 25 kW, ensuring efficient heat exchange. This unit is an ideal solution for medium to large refrigerated trucks, delivering reliable and consistent cooling performance.

K-2000S is truck trailer refrigeration units back wall mounted type for long distance temperatured controlled transport, it is electric standby system to make your temperatured delivery more effiency.

KingClima K-860 Truck refrigeration units is driven by vehicle engine and apply for big trucks with 40~50m³Truck body box to keep temperature range from -20℃ to +30℃. It is installed front mounting into the big truck boxes. The truck freezer units can keep fresh or frozen for different fresh fruits, milk ,ice cream ,vegetables, meat, dairy products, seafoods and so on.

Brief Introduction of K-760 Truck Mounted Refrigeration Units.K-760 freezer units for trucks with very competitive price used for 35-45m³truck body to keep -20℃ to +30℃ temperature controlled transport. Features of K-760 Freezer Units for Trucks:front mounted unit and slim evaporator design，strong refrigerating, cooling fast，apply to all kinds of middle size refrigerated trucks，full digital control, easy to operate.

B-100C Tricycle Refrigeration Units are designed specifically for use in refrigerated tricycles, offering efficient and reliable cooling. These units operate at a temperature of 0°C and support DC12V to DC72V power input, making them versatile for different types of electric tricycles. With a condenser capacity of 36 and an evaporator capacity of 36, the B-100C units deliver optimal refrigeration performance, ensuring reliable cooling for transporting perishable goods.

The K-260C is a compact and energy-efficient refrigeration unit, purpose-built for small refrigerated trucks with a cargo box volume of 6–9m³. Operating efficiently within a temperature range of -18°C to +15°C, this unit is an ideal solution for transporting frozen goods, seafood, meat, dairy, and pharmaceuticals over short to medium distances.
Equipped with the 5S11 compressor offering 108 cc/r displacement, and using R404a refrigerant (charge: 1.1–1.2 kg), the K-260C provides consistent cooling performance with a 700 m³/h airflow, delivered via a single-fan configuration. The unit’s compact condenser (60) and efficient evaporator (13.5) allow for a quick temperature pull-down and stable operation, even under hot climate conditions.

KingClima Super 1000 is a Self-powered combined diesel engine driven semi-trailer refrigeration unit , it is suitable to transport sensitive cargoes, such as ice cream, frozen or fresh meat, dairy milk,sea food,medical pharmaceutical products and so on. The Super 1000diesel engine powered truck refrigeration system is applied for 25~35m³ truck bodies.

The K-460 is a compact and efficient refrigeration unit tailored for 16–22m³ truck boxes. It operates within a wide temperature range of -18°C to +15°C and uses R404a refrigerant (charge: 1.5–1.6 kg). Equipped with a TM16 compressor (162 cc/rev), dual fans providing 1400 m³/h airflow, and strong cooling capacity (31.7 kW condenser, 23 kW evaporator), the K-460 ensures fast and reliable temperature control for both chilled and frozen transport. With support for DC 12V/24V low-voltage systems, it’s an excellent choice for medium-duty cold chain operations.

V-350 Ultrathin Van Refrigeration Units
It is only 120mm height of the van refrigeration units, -18℃ ~ +25℃ temperature controlled, ultral slim type for most of cargo vans with 6-9m³ van box.
Model: V-350
Condenser Height: 120mm
Cooling Capacity: 3350W(1.7℃）1730W（-17.8℃）
Box Volume (m³): 6-9m³

The K-260C is a compact and efficient refrigeration unit tailored for small refrigerated trucks with a cargo box volume of 10 cubic meters. Engine-driven and front-mounted, this unit provides stable temperature control from -5°C to +15°C, ensuring the freshness of transported goods such as dairy, fruits, vegetables, frozen foods, and pharmaceuticals.

KingClima Freezer Box is made for cold-chain transportation in the city.Portable Freeze box can be equipped in pick-up Trucks/Vans/Trcycles for transporting temperature-sensitive products in and environmental condition safely.

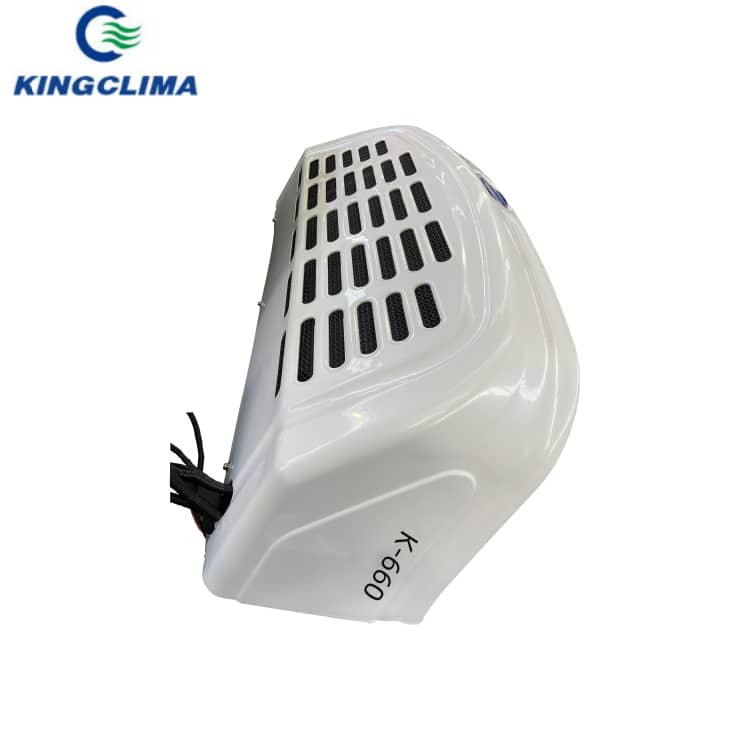

K-660 is for larger refrigerated truck box and KingClima directly sell our truck refrigeration units to customers with whole service.
Model: K-660
Driven Type : Vehicle Engine Driven
Application: 20~25m³ truck body
Temperature: -18℃ to +25℃

KingClima Super800 is a Self-powered combined diesel engine driven semi-trailer refrigeration unit , it is suitable to transport sensitive cargoes, such as ice cream, frozen or fresh meat, dairy milk,sea food,medical pharmaceutical products and so on. The Super800diesel engine powered truck refrigeration system is applied for 25~35m³ truck bodies.

KingClima K2000 Semi-Trailer Refrigeration Unit is a Self-Powered Refrigeration Unit for Trailer, it is suitable to transport sensitive cargoes, such as ice cream, frozen or fresh meat, dairy milk, seafood, medical pharmaceutical products and so on. We offer a line of Transport Refrigeration Units to meet the requirements of today’s competitive markets.

Front mounted unit K-460 truck refrigeration unit also called truck frozen unit, directly driven by vehicle engine, with 3980W cooling capacity at 0℃, mainly used for transport fresh or frozen goods in 4.0~4.5m refrigerated truck box, application on the box size of 15~20m³, temperature range from -18℃ to +15℃. Even if the unit at the high temperature environment or open door constantly, refrigeration unit still have a high performance.

The K-660 is a heavy-duty truck refrigeration unit designed for 20–25m³ refrigerated truck boxes. Powered by a TM16 compressor (163 cc/rev) and using R404a refrigerant, it offers a temperature range from -18°C to +15°C—ideal for both chilled and frozen goods. With triple high-speed fans delivering 1950 m³/h airflow, and enhanced heat exchange capacity (33 kW condenser, 34 kW evaporator), the K-660 ensures rapid and stable cooling performance. It supports DC 12V/24V low-voltage protection, making it a reliable solution for demanding cold chain logistics.

KingClima K-360 Truck chiller units have front mounting and rooftop mounting, driven by vehicle engine and apply for 10-15 m³ Truck body box.Optional Functions of K-360 Truck Refrigeration Units : AC220V/1Ph/50Hz or AC380V/3Ph/50Hz .Optional electric standby system AC 220V/380V.

K-260 truck refrigeration units is a cooling system designed for the transportation of fresh or frozen goods in small vans with container volume of 5-8m³.

K-2100 Trailer Refrigeration Unit is a high-capacity refrigeration system designed for heavy-duty trailer and container applications. Engineered for superior cooling performance, the K-2100 ensures reliable temperature control for the transportation of perishable goods over long distances. Featuring advanced compressor and cooling technology, it offers exceptional energy efficiency and durability. The unit is built to operate in challenging environments, providing consistent cooling performance even under extreme conditions. With easy installation, low maintenance requirements, and robust reliability, the K-2100 is the ideal choice for commercial fleets and logistics operations requiring dependable refrigeration for long-term use.

KingClima K-260 small truck refrigeration units have front mounting and rooftop mounting, driven by vehicle engine and apply for 6-11 m³ Truck body box.

The small truck reefer unis with chiller and freezing function for transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products and seafood…

Are you looking for reliable Chinese suppliers to begin reefer truck business? Contact KingClima today with our best quotation list and service!
Model: K-560
Driven Type : Vehicle Engine Driven
Application: 18~25m³
Temperature: -18℃ to +15℃
