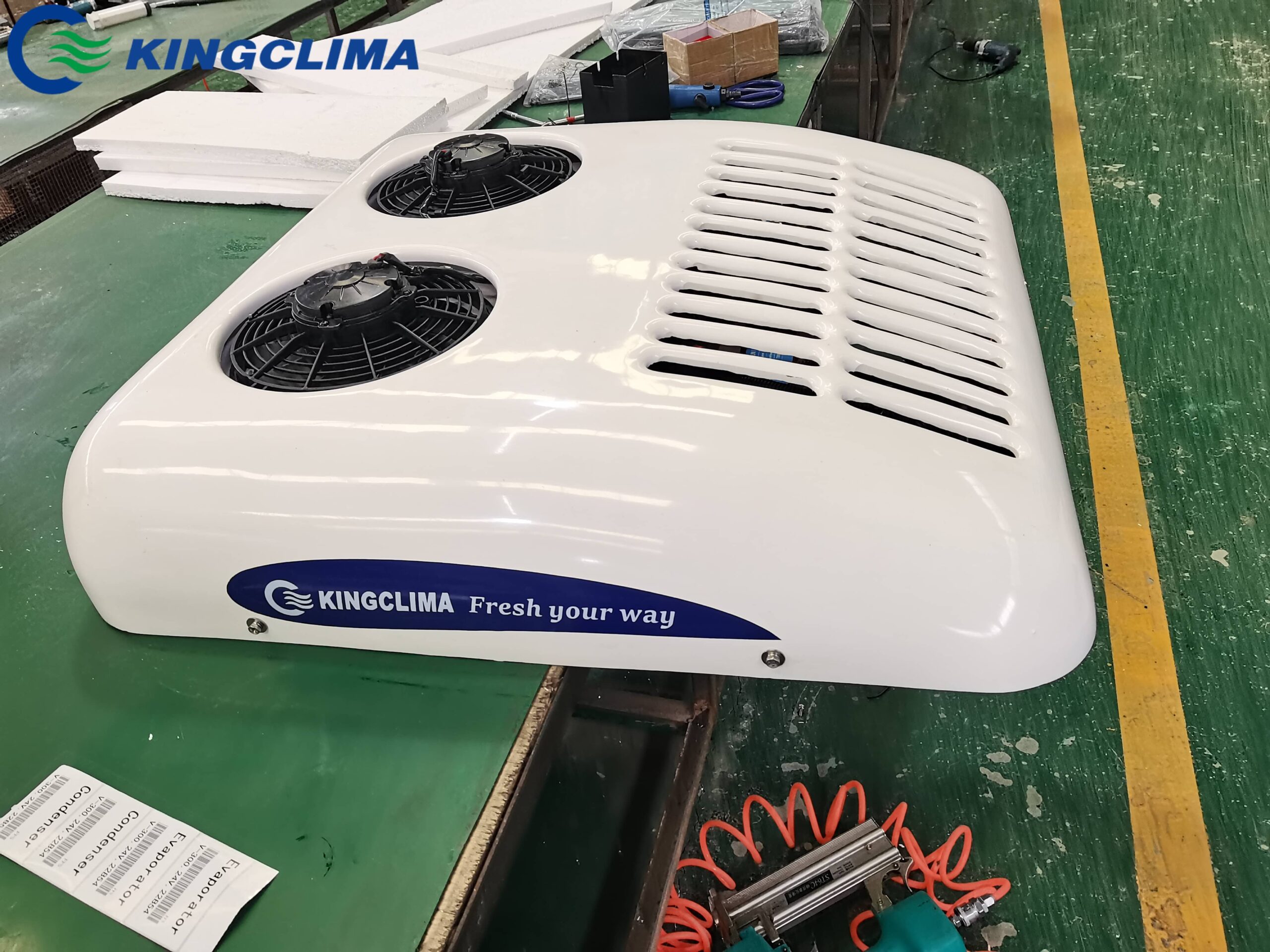

V-300C Van Refrigeration Units

V-300 Van Engine driven Refrigeration units are Rooftop mounting and used for 6-11 m³ van cargo freezer box from -20℃to +15℃, To ensure transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products and seafood. And we also add the heating function especially used in cold temperature area.

The V300 refrigeration unit is designed for refrigerated boxes with a volume of 10 to 15 cubic meters, offering reliable temperature control ranging from -18℃ to 25℃. It uses R404a refrigerant with a charge of 1.3 to 1.4 kg and features a DY5H14 compressor with a displacement of 138 cc per revolution. Delivering an airflow rate of 1300 m³/h and operating on DC12V/DC24V voltage, the V300 ensures efficient and consistent cooling performance. Equipped with a condenser size of 20 and an evaporator size of 19, this unit is ideal for transporting a variety of perishable goods including frozen foods, dairy, and fresh produce.

V-300 Van Refrigeration units/ Direct Driven Units kingthermo small van units are rooftop mounting, driven by vehicle engine and apply for 8 -16 m³ van container box.The van reefer unis with chiller and freezing function for transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products and seafood… kingthermo V-300 Van Refrigeration System Optional Functions AC220V/1Ph/50Hz or AC380V/3Ph/50Hz /Optional electric standby system AC 220V/380V Rooftop mounted unit and slim evaporator design/Strong refrigeration,cooling fast with short time/High-strength plastic enclosure,elegant appearance.Quick installation,simple maintenance an low maintenance cost

The K-200ER refrigeration unit is built for medium-sized refrigerated boxes with a volume range of 6 to 10 m³. It maintains temperatures between -18℃ and 25℃, using R404a refrigerant with a charge of 1 to 1.1 kg. Equipped with a GEV38 compressor, it provides a flow rate of 700 m³/h. Featuring a condenser rated at 50 and an evaporator at 13.5, the K-200ER offers efficient and stable cooling performance, making it a reliable choice for cold chain applications requiring dependable temperature control.

The B-150 refrigeration unit is designed for medium-sized refrigerated boxes ranging from 3 to 6 m³. It operates within a temperature range of -18℃ to 25℃, utilizing R404a refrigerant with a charge of 0.8 to 0.9 kg. Powered by a YQ20D compressor with a displacement of 25cc/rev and a flow rate of 700 m³/h, the unit supports a voltage range of DC12V to DC72V. Equipped with a condenser rated at 35 and an evaporator rated at 13.5, the B-150 provides efficient and reliable cooling performance for a variety of cold chain transport applications.

V-200 Van Refrigeration Units
KingClima V-200 Van Refrigeration Units are rooftop mounting, driven by vehicle engine and apply for 6 -17 m³ van container box.
Model : V-200
Cooling Capacity： 2200W
Application : 10m³
Compressor : DY5H11 / 108cc/r

Van Refrigeration Units
V-350 Ultrathin Van Refrigeration Units
It is only 120mm height of the van refrigeration units, -18℃ ~ +25℃ temperature controlled, ultral slim type for most of cargo vans with 6-9m³ van box.

Rooftop mounting V-300C Van chiller cooling units are driven by van engine and used for 10-16 m³ van cargo box . With QP16 or TM16 compressor and 134a refrigerant to be -5℃ to +15 ℃ to fresh the milk ,vegetables,fruit,red wine etc…

B-350 is rooftop van refrigeration units with high voltage or low voltage for choice to suit for all electric cargo vans with large van box (12-16m³) for lowest temperature controlled with -18℃.
Model: B-350
Voltage: DC48V
Compressor Brand: Two HIGHLY compressors,VDD145 X 2
Refrigerant: R404a

B-100C is refrigeration units for tricycle for the last 1km temperature controlled delivery for store for -5 degree to 30 degree temp.
Model: B-100C
Application: Tricycle
Power Consumption: 300～500W
Dimension (mm): 700×600×215

KingClima V-200 Van Refrigeration Units are rooftop mounting, driven by vehicle engine and apply for 6 -17 m³ van container box.

The V-300 is a reliable refrigeration unit designed for vans, capable of maintaining temperatures from -18℃ to 25℃. It is ideal for transporting temperature-sensitive goods such as fresh produce, dairy, meat, seafood, and frozen items.Key features include:Provides consistent cooling and freezing to meet diverse cargo needs；Utilizes R404a with a charge of 1.3-1.4 kg for efficient and sustainable performance；Equipped with a 20-sized condenser and a 19-sized evaporator for enhanced cooling efficiency.Tailored for van installations, ensuring optimal space utilization.The V-300 ensures dependable refrigerated transportation, making it an excellent choice for businesses requiring high-quality cold chain solutions.

The V-300 is a high-performance van refrigeration unit specifically designed for light refrigerated vans with a box volume of 10–15m³. Capable of maintaining cargo temperatures from -18°C to +25°C, it is ideal for the transportation of frozen goods, perishables, pharmaceuticals, and temperature-sensitive products.
Powered by an efficient DY5H14 compressor with 138 cc/r displacement, the unit uses R404a refrigerant (charge: 1.7–1.8 kg) to deliver strong and reliable cooling. Dual-fan airflow of 1300 m³/h ensures rapid pull-down and even temperature distribution, making it suitable for both short-haul urban delivery and regional cold chain operations.

The V-300C is a high-efficiency refrigeration unit designed for medium-sized vans engaged in urban and intercity delivery of perishable goods. With a powerful cooling system and slim evaporator, it offers superior temperature control without compromising cargo space. Suitable for both chilled and frozen applications, the V-300C supports engine-driven operation and can be equipped with electric standby for flexible delivery schedules. Ideal for transporting dairy, meat, seafood, fruits, and medical supplies, the V-300C delivers reliable performance, energy efficiency, and quiet operation for demanding cold chain logistics.

B-150 Van refrigeration units,Electric driven refrigerating unit, suitable for 2-6mm³ cargon van body at temperature of -15℃~+25℃,DC 12V/24V,uesd for R404a.This model, when the car is stopped, can use its own stored electricity to continue the cooling.

B-350 is rooftop van refrigeration units with high voltage or low voltage for choice to suit for all electric cargo vans with large van box (12-16m³) for lowest temperature controlled with -18℃.
Model: B-350
Voltage: DC48V
Compressor Brand: Two HIGHLY compressors,VDD145 X 2
Refrigerant: R404a

The Super1000 Diesel Refrigeration Unit is a powerful and reliable cooling solution designed for heavy-duty transportation of perishable goods. Powered by a diesel engine, it delivers high cooling capacity, making it ideal for long-distance transport in trucks, trailers, and large vehicles. The Super1000 ensures consistent temperature control, preserving the quality and freshness of temperature-sensitive products like food, pharmaceuticals, and beverages. Known for its fuel efficiency, durability, and robust construction, this unit performs well even in demanding environments. It provides an effective and cost-efficient solution for industries requiring reliable refrigeration over extended transportation periods.

V-350E Van Refrigeration Unit is an all-electric, roof-mounted system tailored for electric vans and urban delivery vehicles . Powered by the vehicle’s battery or an independent power source, it ensures efficient cooling for both fresh and frozen cargo. Featuring zero emissions, low noise, and rapid temperature recovery, the V-350E is ideal for eco-conscious last-mile logistics. Its lightweight design and simple installation make it a top choice for fleet upgrades in green cities.

KingClima Engine Driven Van Refrigeration Units are for transporting fresh and frozen products with the temperature -18℃ ~ +30℃ to choose. Apply for 6-17m³ van body box.

Kingclima Max380 Roof mount vehicle power split van refrigeration units are designed as climate control solutions for cold chain logistics. The units are installed safely and reliably for Heavy/medium/light refrigeration transportation vehicles with the features of high quality, high reliability, small size, fast put down, etc.

V-300 is a top-mounted fuel-driven van chiller and freezer unit, which can be used in a van with a size of 10-15 cubic meters. The Sanden 5S14 compressor we use has a better cooling effect. All our refrigeration units are equipped with standard heating function and can be used in cold regions such as Russia

It needs higher requirement on energy-saving, noise control when refrigeration unit in operating, and even higher protection for vehicle generator to ensure the restart all the time to adjust with much complicated city traffic condition.KingClima fresh and frozen solution for van transport refrigeration unit will meet your needs.

V-350 Ultrathin Van Refrigeration Units
It is only 120mm height of the van refrigeration units, -18℃ ~ +25℃ temperature controlled, ultral slim type for most of cargo vans with 6-9m³ van box.
Model: V-350
Condenser Height: 120mm
Cooling Capacity: 3350W(1.7℃）1730W（-17.8℃）
Box Volume (m³): 6-9m³
