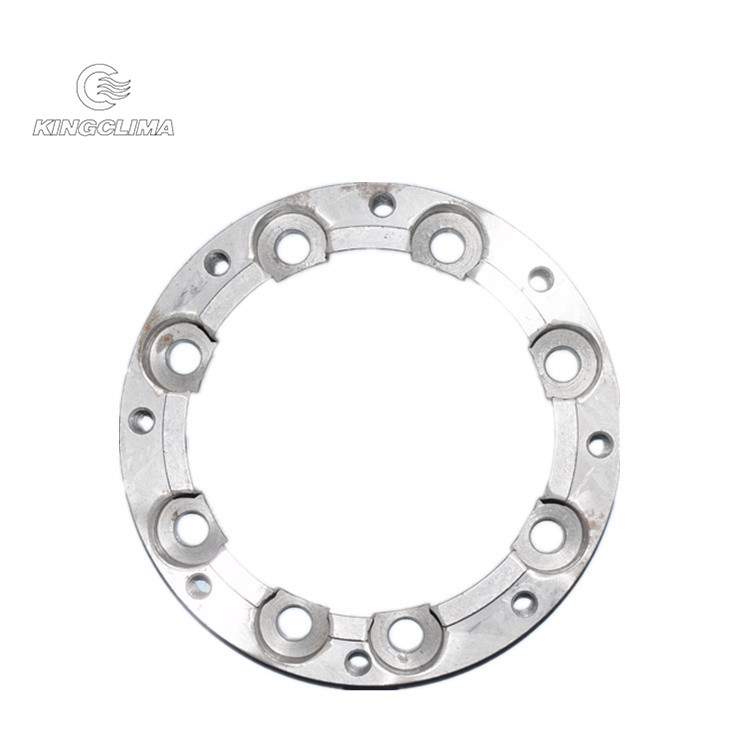

TERCA Retarder Flange For 153 Rear Axle

Installed in the cockpit. The driver realizes the braking of the vehicle by selecting the appropriate gear. Typically mounted on the dashboard or under the steering wheel, it will provide one neutral gear and four to six control gears.
When the car is ignited, the retarder is in a standby state. When the car needs to be slowed down, the purpose of slowing down can be achieved by turning the handle of the manual switch to the required gear step by step. If you want to turn off the slowing down function, just use the handle Turn the control switch handle back to 0 gear.

The diameter of this 043 flange is 182mm, the flange screw is M16, and the drive shaft screw is M16.
Flange body is provided with a through hole in the middle, through the hole around a plurality of bolt holes. The outer circumference wall of the flange is provided with a plurality of connecting holes, through the hole of the mouth is arranged around the step groove, the step groove is inlaid with a sealing ring. There are multiple heat dissipation holes on the plate surface of the flange, so that the flange volume is light and the heat dissipation efficiency is fast.

There are seven models in the DHB series eddy current retarder. Suitable for long-distance and tourist buses with rear gearboxes. The stator is made of aerospace die-cast aluminum alloy, which is anti-magnetization, high strength, light weight and good size stability. The rotor is made of special high-temperature resistant alloy casting, with small deformation and no remanence; the heat dissipation channel adopts a multi-layer structure, which has large ventilation and small thermal decay.

B5-19 and TB-17 stator assembly is for electromagnetic retarder brake. The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The main function of the stator is to generate a rotating magnetic field, while the main function of the rotor is to be wire-cut in the rotating magnetic field to generate a current.

TELMA A series eddy current retarder suitable for all kinds of vehicles with long drive shafts. Installed in the middle of the drive shaft.

Product Introduction：
1. Lightweight, miniaturized dual-rotor design, light weight, low moment of inertia, small dynamic load, and no impact on the transmission system;
2. Stable torque output performance;
3. Diversified matching and wide application;
4. The structure size is small, and the dual-rotor retarder is used to solve the problem of the layout of the drive shaft of the small and medium-sized vehicle;
5. The rotor is made of alloy steel casting;
6.The coil adopts special heat shrinkable material.

The control unit of an eddy current retarder is a vital component responsible for managing and regulating the operation of the retarder system. Eddy current retarders are braking systems commonly used in heavy-duty vehicles to provide efficient and reliable braking force.
The control unit acts as the central intelligence of the eddy current retarder system, interpreting sensor inputs, processing signals, and regulating the braking force to ensure smooth and efficient operation. Its functionality is crucial in providing effective braking performance, enhancing vehicle safety, and optimizing overall vehicle dynamics.We are now ready to start production.

The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The stator frame is evenly equipped with 8 stator core, the stator core is wound with a coil, the stator frame is evenly opened with 8 core holes, the stator core is inserted in the hole and fixed on the stator frame, the two side segments of the extended core hole of the stator core are symmetrically distributed on both sides of the stator frame; Both ends of each stator core are fixedly connected with magnetic conductive plates.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

With its advanced technology and precision engineering, the Eddy Current Retarder Terminal Board enables seamless integration of eddy current retarders into your existing systems. Its compact and efficient design ensures reliable and efficient power transmission, minimizing energy loss and maximizing overall system performance.
Experience the benefits of simplified wiring and enhanced control with our terminal board’s intuitive interface, allowing for easy installation and configuration. Say goodbye to complex wiring setups and hello to streamlined operations.

AX5 Series Eddy Current Retarder Suitable for All Kinds of Vehicles with Long Drive Shafts. The AX5 series comes in two models, AX50-70 and AX51-00.

AX5 Series Product Introduction：
1. Lighter, smaller and better performance;
2. Uniquely designed rotor to enhance torque durability and reduce loss;
3. Optimized current design to reduce current loss;
4. More corrosion resistant;
5. Modular design, longer use time;
6. It is installed in the middle of the drive shaft and has wide applicability.

DHB series retarder stator is made of aerospace die-cast aluminum alloy, which is anti-magnetization, high strength, light weight and good size stability.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The main function of the stator is to generate a rotating magnetic field, while the main function of the rotor is to be wire-cut in the rotating magnetic field to generate a current.

The diameter of this TB24 flange is 182mm, the thickness is 45mm, the flange screw is M16, and the drive shaft screw is M16.
We understand that different vehicles and applications have unique requirements. That’s why we offer customizable options, allowing you to select the retarder flange that best suits your specific needs. From size and shape to material composition, we can tailor our product to match your exact specifications.

CAMA DHB series eddy current retarder suitable for long-distance and tourist buses with rear gearboxes. DHB-24 retarder maximum torque is 2400Nm and electric current is 24V.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

A controller tester for eddy current retarders is a device used to evaluate the functionality and performance of the controllers used in eddy current retarder systems.
The purpose of the controller tester is to simulate various operating conditions and monitor the response of the controller. It helps in identifying any issues or malfunctions in the controller before it is installed in the actual retarder system. This testing ensures that the retarder operates effectively and safely in real-world scenarios.
By using a controller tester for eddy current retarders, manufacturers, maintenance personnel, and researchers can verify the reliability and effectiveness of the controller before its integration into the retarder system. This testing process contributes to improved safety, performance, and longevity of the eddy current retarder in various applications.

The eddy current retarder two pillars wiring board is a critical component within the eddy current retarder system, specifically designed to facilitate the electrical connections and functionality of the system. This wiring board plays a crucial role in ensuring proper communication and power distribution between various components of the eddy current retarder.
Wiring board is a type of socket. It is a porous socket formed by placing multiple sockets together. Simply speaking, a wiring board socket is a porous socket with a power cord and plug and can be moved. It is a common name of a power converter. A wiring board socket can be used for multiple purposes, saving space, saving lines, simple and practical.

Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

DHB-15A stator coil assembly is suitable for CAMA DHB series eddy current retarder. CAMA DHB series eddy current retarder suitable for long-distance and tourist buses with rear gearboxes.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

Retarder intelligent control system adopts microcomputer core control of high automation and intelligence degree to adapt to a variety of harsh working environment with long service life.

Product introduction:
Break the traditional relay switch control mode, using non-contact intelligent module control;
Long service life, the number of work can reach more than 15 million times;
Microcomputer core control, high degree of automation and intelligence;
Strong self-protection function. With functions in various aspects, such as over-temperature, over-current, over-voltage and other automatic protection, and brake dragging, open circuit, short circuit detection and alarm;
Can be connected with the ABS system and brake light system of the original vehicle;
Adapt to harsh environments, high reliability. Adapt to environments at the temperature of -40°C ~ 105° C, with waterproof and salt spray corrosion resistance, and vibration resistance performance;
Conducted a rigorous electromagnetic compatibility design, passed the EU directive AUTOMOTIVE EMC certification;
CAN bus based on SAE J1939 protocol, distributed, modular design.

The diameter of this TERCA flange is 100mm, the thickness is 25mm, there are four holes, and the drive shaft screw is M16.
Our retarder flanges are designed for easy installation, minimizing downtime and maximizing productivity. With clear instructions and compatibility with standard braking systems, integrating our flanges into your existing setup is a seamless process.

The brand name of F191 and 71-95 brake retarder stator assembly is TELMA. The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame. The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

Main power switch assembly generally is installed in the battery compartment, connected to the battery positive terminal and eddy current retarder controller between. It is the main switch to control the eddy current retarder. When not in use for a long time, the main power switch of the eddy current retarder needs to be turned off.
The main function of the switching power supply is to cut high energy into countless low energies, and then transmit it to the output terminal, and the output terminal will also feedback the input terminal through the level of the output voltage. In this way, a stable output voltage can be achieved Effect.

Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

TB-11 series retarder stator is suitable for TERCA TB series eddy current retarder.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The stator frame is evenly equipped with 8 stator core, the stator core is wound with a coil, the stator frame is evenly opened with 8 core holes, the stator core is inserted in the hole and fixed on the stator frame, the two side segments of the extended core hole of the stator core are symmetrically distributed on both sides of the stator frame; Both ends of each stator core are fixedly connected with magnetic conductive plates.

The stator bracket is used to support the stator. During the operation of the retarder, the bracket of the stator bracket can prevent the stator from shaking.
Eddy current retarder is generally composed of stator, rotor and fixed bracket. The diameter and weight of the single stator bracket are much smaller than that of the assembled stator.The stator includes a stator bracket and an iron core and coil, which are secured by the bracket. The stator bracket is an indispensable part of retarder.

The eddy current retarder B series five pillars 0.2KGS wiring board is a critical component within the eddy current retarder system, specifically designed to facilitate the electrical connections and functionality of the system. This wiring board plays a crucial role in ensuring proper communication and power distribution between various components of the eddy current retarder.
Wiring board is a type of socket. It is a porous socket formed by placing multiple sockets together. Simply speaking, a wiring board socket is a porous socket with a power cord and plug and can be moved. It is a common name of a power converter. A wiring board socket can be used for multiple purposes, saving space, saving lines, simple and practical.

The AX8 series is divided into AX83-00 and AX83-40 models. AX8 series bus brake eddy current retarder suitable for all kinds of vehicles with long drive shafts.

Product Introduction：
1. Lighter, smaller and better performance;
2. Uniquely designed rotor to enhance torque durability and reduce loss;
3. Optimized current design to reduce current loss;
4. More corrosion resistant;
5. Modular design, longer use time;
6. It is installed in the middle of the drive shaft and has wide applicability.

It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.
SZZ52006 two gears relay box is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.

Eddy current retarder controllers play a crucial role in the world of vehicle braking systems, offering enhanced control and efficiency. These advanced devices harness the power of eddy currents to provide reliable and effective braking performance.
Eddy current retarder controllers serve as the brains behind this intricate process. They regulate the strength of the magnetic field and control the amount of braking force applied. By adjusting the parameters of the controller, such as current intensity or frequency, the braking power can be finely tuned to suit various driving conditions and vehicle requirements.

Mounted on the frame with the valve seat. It is connected with the front brake air path through the three-way and the air pipe, which is the control switch when the brake pedal is used to operate the retarder. Under the action of brake pressure, the pressure switch is switched on successively to control the action of the relay box.
The retarder pressure switch provided by our company has a variety of models, including 3P 5P 7P 10P, etc., with a rich variety.

The control unit of an eddy current retarder is a vital component responsible for managing and regulating the operation of the retarder system. Eddy current retarders are braking systems commonly used in heavy-duty vehicles to provide efficient and reliable braking force.
The control unit acts as the central intelligence of the eddy current retarder system, interpreting sensor inputs, processing signals, and regulating the braking force to ensure smooth and efficient operation. Its functionality is crucial in providing effective braking performance, enhancing vehicle safety, and optimizing overall vehicle dynamics.

It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.
TERCA brand 8133 Y controller is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
