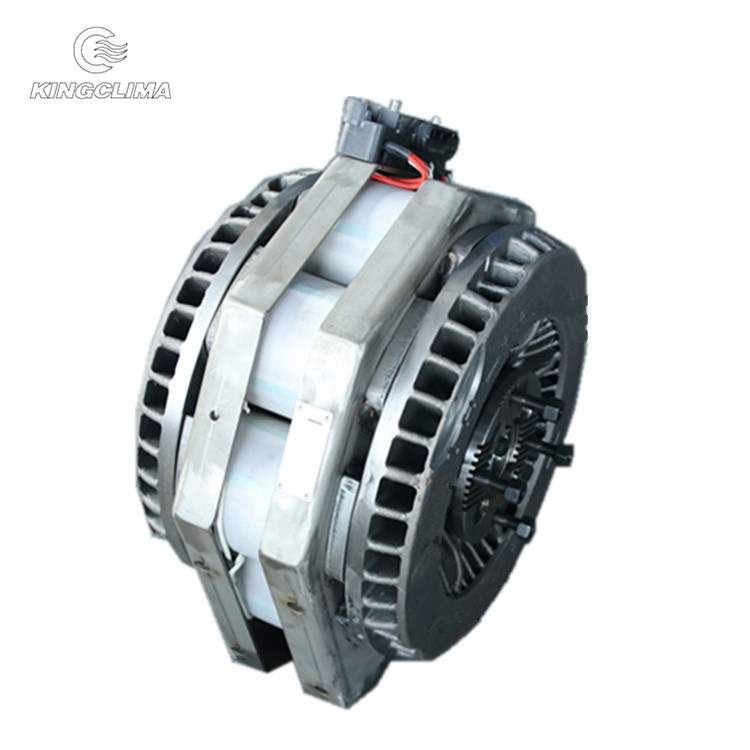

TELMA AX7 Series Bus Brake Eddy Current Electric Retarder

The control unit of an eddy current retarder is a vital component responsible for managing and regulating the operation of the retarder system. Eddy current retarders are braking systems commonly used in heavy-duty vehicles to provide efficient and reliable braking force.
The control unit acts as the central intelligence of the eddy current retarder system, interpreting sensor inputs, processing signals, and regulating the braking force to ensure smooth and efficient operation. Its functionality is crucial in providing effective braking performance, enhancing vehicle safety, and optimizing overall vehicle dynamics.We are now ready to start production.

The diameter of this FV61-30 E-shaped shaft flange is 162mm, the flange screw is M14, and the drive shaft screw is M12.
Our retarder flanges are designed for easy installation, minimizing downtime and maximizing productivity. With clear instructions and compatibility with standard braking systems, integrating our flanges into your existing setup is a seamless process.

Model number TR10 retarder stator coil assembly is a product of the famous Chinese retarder brand TERCA. The TR10 retarder stator is specially fitted in gearboxes.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame. The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

The diameter of this 043 flange is 182mm, the flange screw is M16, and the drive shaft screw is M14.
Investing in our retarder flanges is a cost-effective solution to improve braking performance. By reducing wear and tear on standard brake systems, our flanges can extend their lifespan and minimize maintenance costs, ultimately saving you time and money.

The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The stator frame is evenly equipped with 8 stator core, the stator core is wound with a coil, the stator frame is evenly opened with 8 core holes, the stator core is inserted in the hole and fixed on the stator frame, the two side segments of the extended core hole of the stator core are symmetrically distributed on both sides of the stator frame; Both ends of each stator core are fixedly connected with magnetic conductive plates.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

The diameter of this 043 flange is 182mm, the flange screw is M16, and the drive shaft screw is M16.
Flange body is provided with a through hole in the middle, through the hole around a plurality of bolt holes. The outer circumference wall of the flange is provided with a plurality of connecting holes, through the hole of the mouth is arranged around the step groove, the step groove is inlaid with a sealing ring. There are multiple heat dissipation holes on the plate surface of the flange, so that the flange volume is light and the heat dissipation efficiency is fast.

This TERCA flange is used to match the 153 rear axle. The black one has a diameter of 166mm and a thickness of 34mm. The white one is 175mm in diameter and 28mm thick.
Crafted from high-quality materials, our retarder flanges are built to withstand extreme temperatures, heavy loads, and continuous usage. Count on their durability and reliability to deliver consistent performance over an extended period.

B5-19 and TB-17 stator assembly is for electromagnetic retarder brake. The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The main function of the stator is to generate a rotating magnetic field, while the main function of the rotor is to be wire-cut in the rotating magnetic field to generate a current.

Retarder parts TERCA 8429 controller relayblock is high quality. Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

Installed in the driver’s room, to show the work of eddy current retarder to the driver. The fault diagnosis basis of eddy current retarder is presented. Indicator light are mostly LED lights, which are used to indicate different working states of the equipment, so as to check whether the equipment is working normally.
By closely monitoring these indicator lights, drivers and technicians can ensure the proper functioning and safety of the eddy current retarder system, contributing to smooth and controlled braking performance, especially in demanding operating conditions.

The retarder handle switch is installed in the cockpit. The driver realizes the braking of the vehicle by selecting the appropriate gear. Typically mounted on the dashboard or under the steering wheel, it will provide one neutral gear and four to six control gears.
When the car is ignited, the retarder is in a standby state. When the car needs to be slowed down, the purpose of slowing down can be achieved by turning the handle of the manual switch to the required gear step by step. If you want to turn off the slowing down function, just use the handle Turn the control switch handle back to 0 gear.

Installed in the cockpit. The driver realizes the braking of the vehicle by selecting the appropriate gear. Typically mounted on the dashboard or under the steering wheel, it will provide one neutral gear and four to six control gears.
When the car is ignited, the retarder is in a standby state. When the car needs to be slowed down, the purpose of slowing down can be achieved by turning the handle of the manual switch to the required gear step by step. If you want to turn off the slowing down function, just use the handle Turn the control switch handle back to 0 gear.

The control unit of an eddy current retarder is a crucial component that plays a key role in the operation and management of the retarder system. It is responsible for monitoring and regulating the braking force generated by the retarder, ensuring safe and efficient braking performance.
The control unit acts as the brain of the eddy current retarder system, processing sensor inputs, generating control signals, and regulating the braking force. Its functionality ensures smooth and reliable braking performance while considering safety, efficiency, and integration with other vehicle systems.

Retarder intelligent control system adopts microcomputer core control of high automation and intelligence degree to adapt to a variety of harsh working environment with long service life.

Product introduction:
Break the traditional relay switch control mode, using non-contact intelligent module control;
Long service life, the number of work can reach more than 15 million times;
Microcomputer core control, high degree of automation and intelligence;
Strong self-protection function. With functions in various aspects, such as over-temperature, over-current, over-voltage and other automatic protection, and brake dragging, open circuit, short circuit detection and alarm;
Can be connected with the ABS system and brake light system of the original vehicle;
Adapt to harsh environments, high reliability. Adapt to environments at the temperature of -40°C ~ 105° C, with waterproof and salt spray corrosion resistance, and vibration resistance performance;
Conducted a rigorous electromagnetic compatibility design, passed the EU directive AUTOMOTIVE EMC certification;
CAN bus based on SAE J1939 protocol, distributed, modular design.

CAMA DHB series eddy current retarder suitable for long-distance and tourist buses with rear gearboxes. DHB-24 retarder maximum torque is 2400Nm and electric current is 24V.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

This retarder rotor is suitable for TELMA DX1700 and DX2400 eddy current retarders.
It is composed of symmetrical front and back turntables, which are fixed as a whole through flange or connecting ring in the middle. High speed rotation with the drive shaft. The use of special material — 12 Cr molybdenum-vanadium (trace element) + iron = high temperature resistance (retarder high temperature can produce more than 500 degrees of heat, the whole rotor red, easy to deformation, if add 12 Cr molybdenum-vanadium, will not be deformed).
The rotor is called armature core, and armature winding is installed on it. It generates induced electromotive force after being energized and acts as a rotating magnetic field to generate electromagnetic torque for energy conversion.

Active stock TELMA brand F series bus electromagnetic brake eddy current retarder installed in the gearbox or rear axle from KINGRETARDER.

Product Introduction：
1. The unique material technology rotor meets the durability test requirements;
2. The electronic control part of the high-performance of Telma retarder;
3. The whole process of computer numerical control processing technology;
4. The rotor is cast with alloy steel;
5. The coil adopts special heat shrinkable material;

The diameter of this TR10 retarder flange for 153 rear axle is 166mm and the thickness is 28mm.
Whether you operate a fleet of commercial trucks, heavy machinery, or specialized vehicles, our retarder flanges are engineered to optimize your braking system’s efficiency. Experience the difference in braking performance and safety with our high-quality retarder flanges.

The eddy current retarder B series five pillars 0.2KGS wiring board is a critical component within the eddy current retarder system, specifically designed to facilitate the electrical connections and functionality of the system. This wiring board plays a crucial role in ensuring proper communication and power distribution between various components of the eddy current retarder.
Wiring board is a type of socket. It is a porous socket formed by placing multiple sockets together. Simply speaking, a wiring board socket is a porous socket with a power cord and plug and can be moved. It is a common name of a power converter. A wiring board socket can be used for multiple purposes, saving space, saving lines, simple and practical.

Eddy current retarder indicator lights play a crucial role in the efficient operation of heavy-duty vehicles equipped with eddy current retarders.
The indicator lights associated with these retarders serve as essential visual cues for both the driver and maintenance personnel, providing important information about the functioning and status of the retarder system. These indicator lights are designed to communicate various conditions and warnings, such as the engagement and disengagement of the retarder, temperature levels, fault detection, and overall system health.

When the car is ignited, the retarder is in a standby state. When the car needs to be slowed down, the purpose of slowing down can be achieved by turning the handle of the manual switch to the required gear step by step. If you want to turn off the slowing down function, just use the handle Turn the control switch handle back to 0 gear.
The handle switch is divided into 5 gears, 0 means the retarder is closed, 1 means the retarder constant speed gear, 2 means 1/4 of the maximum retarding torque, 3 means 1/2 of the maximum retarding torque, The 4th gear represents 3/4 of the maximum retarding torque, and the 5th gear represents the maximum retarding torque.

Relay is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.
It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.

The diameter of this TR10 gearbox flange is 180mm, the height is 111mm, and the flange screw is M12. Our retarder flanges are specifically engineered to optimize braking power. By providing additional braking force, they help reduce vehicle speed effectively, even in demanding conditions.
Crafted from high-quality materials, our retarder flanges are built to withstand extreme temperatures, heavy loads, and continuous usage. Count on their durability and reliability to deliver consistent performance over an extended period.

The diameter of this 043 flange for end face is 182mm, the flange screw is M16, and the drive shaft screw is M14.
We understand that different vehicles and applications have unique requirements. That’s why we offer customizable options, allowing you to select the retarder flange that best suits your specific needs. From size and shape to material composition, we can tailor our product to match your exact specifications.

TB-21 series retarder fittings stator assembly from KINGCLIMA are selling briskly. TB-21 is the retarder type of TERCA TB series.
The stator has several groups of internal coils, which are the main working parts of retarder. It is connected with the chassis of the vehicle through a fixed bracket. The stator is the stationary part of a motor. The stator consists of three parts: stator core, stator winding and frame.
The action of the stator is to produce an alternating current and the action of the rotor is to create a rotating magnetic field.

TB series eddy current retarder contains 9 models in total. Suitable for installation in various gearboxes or rear axles; Compact structure and light weight; High electric power, low power consumption; The turntable made of special materials has small thermal deformation and low thermal decay of braking torque; Large braking torque, wide torque range, suitable for all kinds of large and medium-sized passenger cars, trucks and special vehicles; Adopt digital and intelligent controller, safer to use and more reliable to work; The blade has undergone technical reforms, which not only maintains a better heat dissipation capacity, but also greatly reduces the drag coefficient.

It is an electronic control device, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit), and is usually used in an automatic control circuit. It actually uses a smaller current to control a larger current A kind of “automatic switch”.
SZZ52006 two gears relay box is a kind of electric control device, is when the change of the input quantity to meet the specified requirements, in the electrical output circuit to make the controlled quantity of a predetermined step change of an electrical appliance. Relay has control system and controlled system, usually used in the automatic control circuit, in the circuit plays the role of automatic regulation, safety protection, conversion circuit and so on.

The DHQ series has five models. DHQ series eddy current retarder suitable for urban buses and medium- and light-duty vehicles with short rear suspension and unable to shorten the drive shaft. It is characterized by its light weight and low power consumption. The 12 coils are distributed radially, the installation size is small, and the low-speed performance is good. The excitation gap does not need to be adjusted, and a small amount of string movement along the axial flange does not affect the use. The rotor adopts a single-rotor drum structure and is cast with special high-temperature alloy, which is light in weight and small in deformation.

Prepare to witness a paradigm shift in wiring technology with the groundbreaking Eddy Current Retarder R Series Four Pillars Wiring Board. Engineered to redefine connectivity and efficiency, this revolutionary wiring board is poised to transform the landscape of electrical systems.
The Eddy Current Retarder R Series Wiring Board seamlessly integrates with four pillars eddy current retarders, offering a seamless and optimized power transmission solution. Its state-of-the-art design and precision engineering work in harmony to minimize energy loss and maximize the overall efficiency and performance of your systems.

Eddy current retarder controllers are essential components in the field of vehicle braking systems, offering enhanced control and efficiency. These controllers play a vital role in harnessing the power of eddy currents to provide reliable and effective braking performance.
Eddy current retarder controllers serve as the intelligence behind this intricate process. They regulate the strength of the magnetic field and control the amount of braking force applied. By adjusting various parameters, such as current intensity or frequency, the braking power can be finely tuned to adapt to different driving conditions and vehicle requirements.
