KK-400 Bus AC (New Designed)

Driven Type : Engine Direct Driven
Cooling Capacity : 40KW/ 34,482Cal/h/13,7931BTU
Compressor : Bock 655K
Evaporator Air Flow (m³/h) : 7000m³/h
Condenser Air Flow (m³/h) : 9500m³/h

We're here to help: Easy ways to get the answers you need.

Traditional Bus Air Conditioner

HOT PRODUCTS

Brief Introduction of KK-400 Bus Air Conditioner

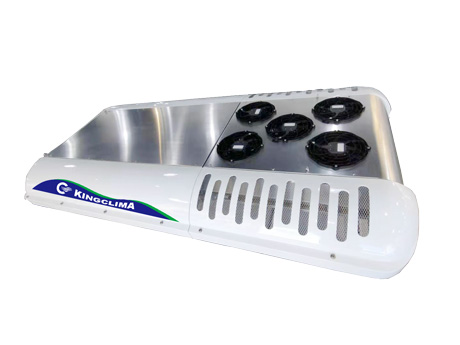

KK-400 is Rooftop Mounted Unit which designed for large city bus of 11-13M or coach of 11-13M, the compressor is powered by vehicle engine, and the control system is powered by an independent alternator.

KK-400 with 40kw cooling capacity, equipped with Bock 655K compressors (or choose the more larger displacement compressors for hot ambient temperate places), suit for 11-13m city buses or coaches.




Photo: details of KK-400 bus air conditioners


Features of KK-400 Bus AC Unit

★Light : Front windward design, micro-channel condenser, 5% less in fuel consumption, and weight is only 170kgs.

★ Convenient: Only by unfolding the side cover, most job can be done. Self-positioning pneumatic supporter for better safety and labor-saving.

★ Low-noise:  Experiments have shown that the return wind speed decreased by 32% , fan noise is reduced by 3 dB compared to conventional product.

★ Beautiful: The shape is simple and generous, thin and flexible, full of the beauty of dexterity.

★Environmental: The density of RTM (Resin Transfer Molding)is less than 1.6, the thickness is between 2.8mm and 3.5mm.

★Efficient:The evaporator core has been upgraded from φ9.52*(6*7) to φ7*(6*9), achieves 20% higher in heat exchange efficiency.



kk-400 bus air conditioner inside details (vr)






Technical Data

Model

KK-400

Cooling Capacity (Kcal/h)

35000(40kw)

Heating Capacity (Kcal/h)

32000(37kw)

Evaporator Air Flow (m³/h)

7000

Condenser Air Flow (m³/h)

9500

Compressor Displacement(CC)

650CC

Total Weight

170KG

Overall Dimensions(MM)

3360*1720*220

Application

11-13 meter buses


Technical of KK-400 Air Conditioning System for Bus
