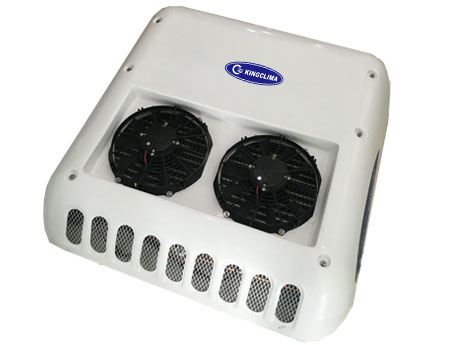

Description of KK-100 Air Conditioning Units for Minibuses :

KK-100 model is perfect van ac unit, vehicle powered for different vans or minibus, 10KW cooling systems, and rooftop mounted types.

Features of KK-100 AC Units for Vans :

▲ 10KW cooling capacity, cool the 6-7.2m minibus.

▲ Vehicle engine powered, integrated roof top mounted types.

▲ Beautiful appearance, designed for MVP (Muti-purpose Vehicles) and some commercial vehicles.

▲ Suitable for all kinds of vehicle brands, such as for Ford, Renault, VW, IVECO and other brands of commercial vehicles.

▲ Large cooling capacity and fast cooling speed, get cooling in minutes.

▲ No noise, bring passengers a very comfortable and pleasant driving time.

▲ 2 years after sales service

▲ Spare parts free change in 2 years

▲ 7*24h after sales online chatting

Model		KK-80	KK-100
Cooling Capacity		8KW	10KW
Voltage		DC12V/24V	DC12V/24V
Installation Type		Integrated Rooftop Mounted
Driven Type		Vehicle Engine Driven
Condenser	Type	Copper Pipe and Aluminum Foil Fin
	Fan Qty	2	2
	Air Flow Volume (m³/h)	3800m³/h	3800m³/h
Evaporator	Type	Copper Pipe and Aluminum Foil Fin
	Fan Qty	1	2
	Air Flow Volume (m³/h)	1000m³/h	2000m³/h
Evaporator Blower		Double axle and centrifugal flow
Condenser Fan		Axial flow
Compressor		7H15, 155cc/r	HL22, 212cc/r
Refrigerant		R134a
Dimensions (mm)	Evaporator	1010975180	1010975180
	Condenser
Application vehicle types		6-6.5m minibus or caravans	6-7.2m minibus or caravans
